Practical Examples: Batch Conversion, Probes, and Plots#

This notebook collects three common post-processing recipes built on top of the xarray_binfile.tutorial helpers:

convert every file in a directory from float64 to float32 and save the result to another directory
extract a time series at a fixed point (a probe) and export it to CSV
draw quick exploration plots with matplotlib

All input files are synthesized on the fly with DatasetGenerator, so the notebook is self-contained and reproducible.

Note

These recipes reuse the shipped FileSpecsGetter convention ({name}-{digits:04}.bin). For a different on-disk layout, provide your own read/write getters as shown in Spec getter protocols.

import pathlib
import tempfile

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import xarray as xr

import xarray_binfile  # noqa: F401  (registers the .binary_engine accessors)
from xarray_binfile.tutorial import DatasetGenerator, FileSpecsGetter

source_directory_holder = tempfile.TemporaryDirectory()
float32_directory_holder = tempfile.TemporaryDirectory()
csv_directory_holder = tempfile.TemporaryDirectory()
source_directory = pathlib.Path(source_directory_holder.name)
float32_directory = pathlib.Path(float32_directory_holder.name)
csv_directory = pathlib.Path(csv_directory_holder.name)
source_directory

PosixPath('/tmp/tmpljjpnx2u')

Generate example data#

The source dataset uses float64 values on a small 3D grid, stored as one file per variable and timestep. This mimics a typical simulation output directory.

base_coords = {
    "x": np.linspace(0.0, 3.0, num=16, dtype=np.float32),
    "y": np.linspace(-1.0, 1.0, num=12, dtype=np.float32),
    "z": np.linspace(0.0, 2.0, num=8, dtype=np.float32),
}

reader_float64 = FileSpecsGetter(base_coords=base_coords, dtype=np.float64)
dataset_generator = DatasetGenerator(reader_float64.reader)
filenames = (
    reader_float64.filename_template.format(name=name, digits=step)
    for name in ("ux", "uy", "uz")
    for step in range(6)
)
source_dataset = dataset_generator(map(pathlib.Path, filenames))
source_dataset.binary_engine.to_file(reader_float64.writer, source_directory)
sorted(path.name for path in source_directory.glob("*.bin"))[:6]

['ux-0000.bin',
 'ux-0001.bin',
 'ux-0002.bin',
 'ux-0003.bin',
 'ux-0004.bin',
 'ux-0005.bin']

1. Batch-convert every file from float64 to float32#

Halving the on-disk word size is a common way to shrink large binary outputs when single precision is enough. Because the raw files carry no dtype information, we read them with a float64 getter, cast each variable to float32, and write the result into a separate directory.

reader_float32 = FileSpecsGetter(base_coords=base_coords, dtype=np.float32)

for path in sorted(source_directory.glob("*.bin")):
    single = xr.open_dataset(
        path, engine="binfile", read_specs_getter=reader_float64.reader
    )
    name = next(iter(single.data_vars))
    single[name].astype(np.float32).binary_engine.to_file(
        reader_float32.writer, float32_directory
    )

sorted(path.name for path in float32_directory.glob("*.bin"))[:6]

['ux-0000.bin',
 'ux-0001.bin',
 'ux-0002.bin',
 'ux-0003.bin',
 'ux-0004.bin',
 'ux-0005.bin']

The converted directory keeps the same file names, but each file is half the size. Reading it back requires a getter that declares float32; using the wrong dtype would silently misinterpret the bytes.

original_bytes = sum(p.stat().st_size for p in source_directory.glob("*.bin"))
converted_bytes = sum(p.stat().st_size for p in float32_directory.glob("*.bin"))
ratio = converted_bytes / original_bytes
print(f"on-disk size: {original_bytes} B -> {converted_bytes} B ({ratio:.0%})")

converted_dataset = xr.open_mfdataset(
    sorted(float32_directory.glob("*.bin")),
    engine="binfile",
    read_specs_getter=reader_float32.reader,
    chunks={"time": 2},
    parallel=True,
)
xr.testing.assert_allclose(
    converted_dataset.compute(), source_dataset.astype(np.float32)
)
print("dtype:", converted_dataset["ux"].dtype, "| round-trip matches source")

on-disk size: 221184 B -> 110592 B (50%)
dtype: float32 | round-trip matches source

2. Extract a probe time series and export to CSV#

A probe samples one grid point across every timestep. We open the whole collection lazily, build a derived speed field, select the point nearest to a target location, and export the resulting time series with pandas.

csv_path = csv_directory / "probe_speed.csv"
probe.to_dataframe().to_csv(csv_path)

pd.read_csv(csv_path).head()

	time	x	y	z	speed
0	0	1.6	0.090909	0.857143	1.047876
1	1	1.6	0.090909	0.857143	1.372142
2	2	1.6	0.090909	0.857143	0.444745
3	3	1.6	0.090909	0.857143	0.334870
4	4	1.6	0.090909	0.857143	1.104434

3. Quick exploration plots with matplotlib#

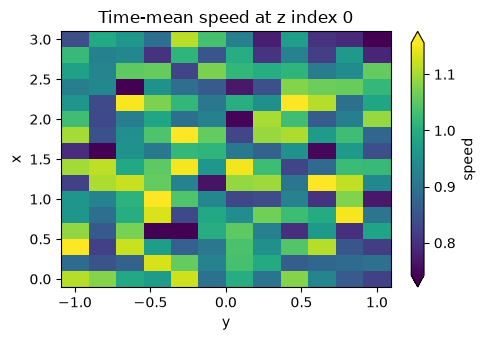

xarray’s .plot() helpers draw straight onto matplotlib axes, so you can mix them with plain matplotlib calls. First, a time-averaged horizontal slice of the speed field:

mean_speed = speed.mean("time").compute()

fig, ax = plt.subplots(figsize=(5, 3.5))
mean_speed.isel(z=0).plot(ax=ax, cmap="viridis", robust=True)
ax.set_title("Time-mean speed at z index 0")
fig.tight_layout()
plt.show()

../_images/bb3ec350290d27075a471e2fa7501e3c28863f295defdee9cc7d379c50306543.png

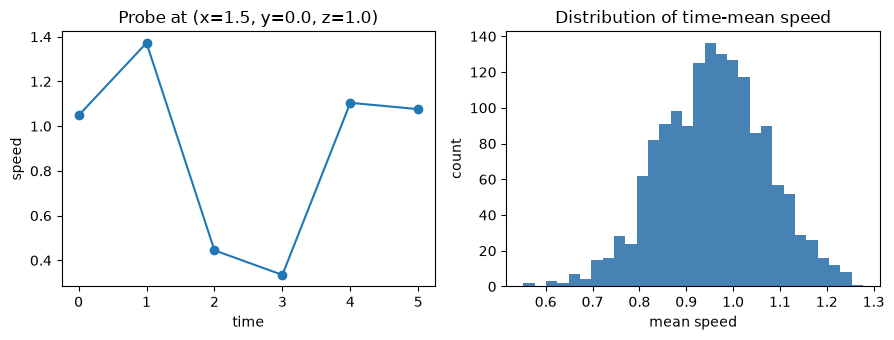

Next, the probe time series and the distribution of the mean-speed field side by side, using matplotlib directly:

fig, (ax_line, ax_hist) = plt.subplots(1, 2, figsize=(9, 3.5))

ax_line.plot(probe["time"], probe.values, marker="o")
ax_line.set_xlabel("time")
ax_line.set_ylabel("speed")
ax_line.set_title("Probe at (x=1.5, y=0.0, z=1.0)")

ax_hist.hist(mean_speed.values.ravel(), bins=30, color="steelblue")
ax_hist.set_xlabel("mean speed")
ax_hist.set_ylabel("count")
ax_hist.set_title("Distribution of time-mean speed")

fig.tight_layout()
plt.show()

../_images/82878c933c45bfa63911cf62d398dae87b0744e0e7e74c65e509d907258067ad.png

From here, the full xarray and Dask APIs are available for indexing, reductions, and larger-than-memory workflows. See the xarray documentation and the Dask documentation for more.
