Flow Around a Complex Body

Flow Around a Complex Body#

import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

import xcompact3d_toolbox as x3d

%load_ext autoreload
%autoreload 2

Parameters#

  • Numerical precision

Use np.float64 if Xcompact3d was compiled with the flag -DDOUBLE_PREC, use np.float32 otherwise.

x3d.param["mytype"] = np.float64

  • Xcompact3d’s parameters

For more information about them, checkout the API reference.

prm = x3d.Parameters(
    filename="input.i3d",
    itype=12,
    p_row=0,
    p_col=0,
    nx=257,
    ny=129,
    nz=32,
    xlx=15.0,
    yly=10.0,
    zlz=3.0,
    nclx1=2,
    nclxn=2,
    ncly1=1,
    nclyn=1,
    nclz1=0,
    nclzn=0,
    iin=1,
    re=300.0,
    init_noise=0.0125,
    inflow_noise=0.0125,
    dt=0.0025,
    ifirst=1,
    ilast=45000,
    ilesmod=1,
    iibm=2,
    nu0nu=4.0,
    cnu=0.44,
    irestart=0,
    icheckpoint=45000,
    ioutput=200,
    iprocessing=50,
    jles=4,
)

Setup#

Geometry#

Everything needed is in one dictionary of Arrays (see API reference):

epsi = x3d.init_epsi(prm)

The four \(\epsilon\) matrices are stored in a dictionary:

epsi.keys()

dict_keys(['epsi', 'xepsi', 'yepsi', 'zepsi'])

Just to exemplify, we can draw and plot a cylinder. Make sure to apply the same operation over all arrays in the dictionary. Plotting a xarray.DataArray is as simple as da.plot() (see its user guide), I’m adding extra options just to exemplify how easily we can select one value in \(z\) and make a 2D plot:

for key in epsi:
    epsi[key] = epsi[key].geo.cylinder(x=1, y=prm.yly / 4.0)

epsi["epsi"].sel(z=0, method="nearest").plot(x="x");
../_images/f3273ebb5bf5714c399aeed571f5d0e46f671f0d3049bcbc442983430f3198d1.png

Notice that the geometries are added by default, however, we can revert it by setting remp=False. We can execute several methods in a chain, resulting in more complex geometries.

for key in epsi:
    epsi[key] = (
        epsi[key]
        .geo.cylinder(x=2, y=prm.yly / 8.0)
        .geo.cylinder(x=2, y=prm.yly / 8.0, radius=0.25, remp=False)
        .geo.sphere(x=6, y=prm.yly / 4, z=prm.zlz / 2.0)
        .geo.box(x=[3, 4], y=[3, 4])
    )

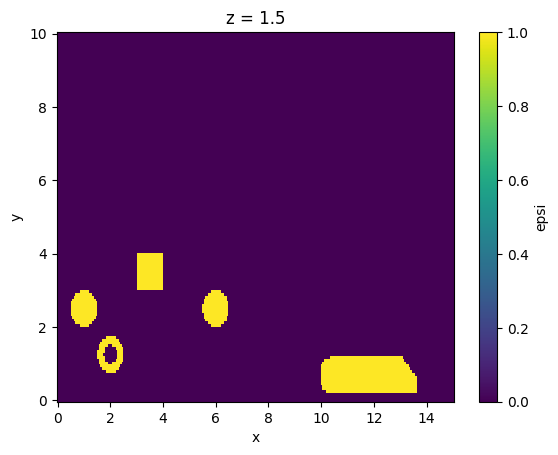

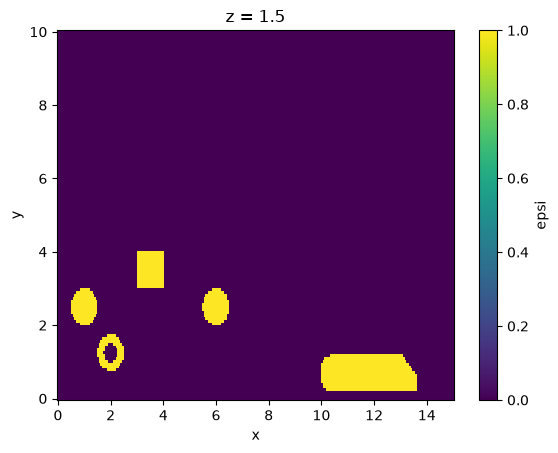

epsi["epsi"].sel(z=prm.zlz / 2, method="nearest").plot(x="x");

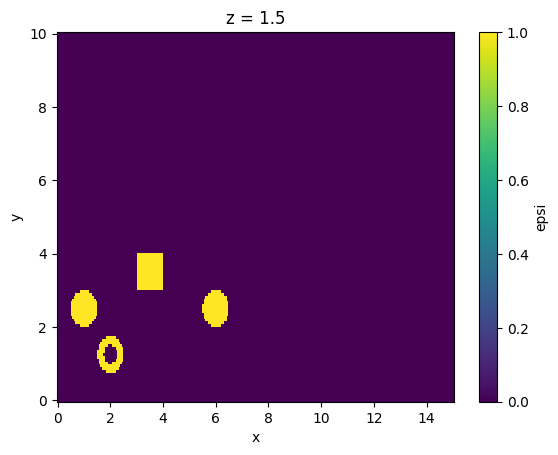

../_images/9fb425952425b489848ffbc6e2ff03436b2e4d92d591e147f19076e947958ce4.png

Other example, Ahmed body:

for key in epsi:
    epsi[key] = epsi[key].geo.ahmed_body(x=10, wheels=False)

epsi["epsi"].sel(z=prm.zlz / 2, method="nearest").plot(x="x");
../_images/eb89a029de3071381d132210a2fcd97324e3d0781d74b394e40efc5c4f2154e7.png

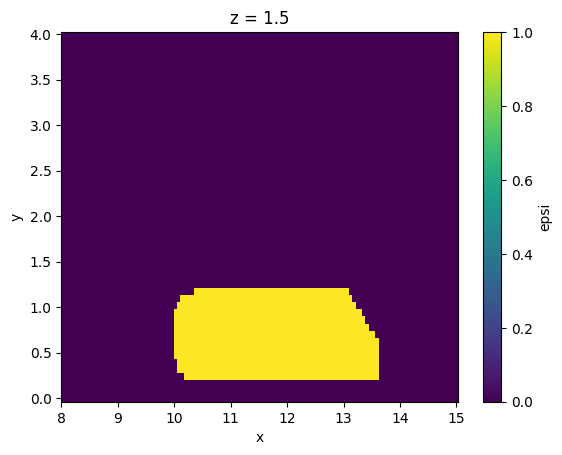

Zooming in:

epsi["epsi"].sel(x=slice(8, None), y=slice(None, 4)).sel(z=prm.zlz / 2, method="nearest").plot(x="x");
../_images/61f60642fa8e30a39721e90e00c7a824357c3cd0adc21875c77444ea6a017e03.png

And just as an example, we can mirror it:

for key in epsi:
    epsi[key] = epsi[key].geo.mirror("y")

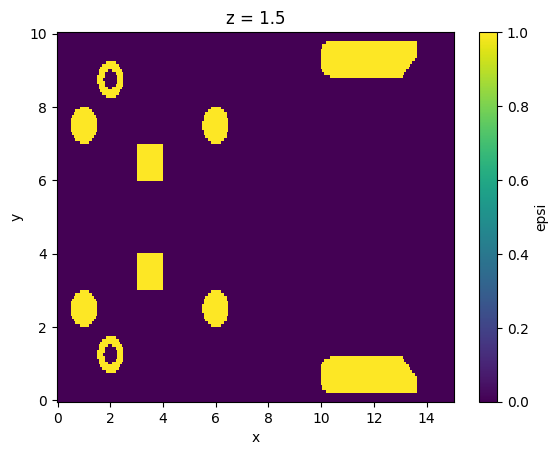

epsi["epsi"].sel(z=prm.zlz / 2, method="nearest").plot(x="x");
../_images/269448f6f8e40bda9ae1ae219a0cb81a6ef992fa85f529b0ec3ab019ecc32b10.png

It was just to show the capabilities of xcompact3d_toolbox.sandbox, you can use it to build many different geometries and arrange them in many ways. However, keep in mind the aspects of numerical stability of our Navier-Stokes solver, it is up to the user to find the right set of numerical and physical parameters.

For a complete description about the available geometries see Api reference. Notice that you combine them for the creation of unique geometries, or even create your own routines for your own objects.

So, let’s start over with a simpler geometry:

epsi = x3d.sandbox.init_epsi(prm)

for key in epsi:
    epsi[key] = epsi[key].geo.cylinder(x=prm.xlx / 3, y=prm.yly / 2)

epsi["epsi"].sel(z=0, method="nearest").plot(x="x")
plt.show();

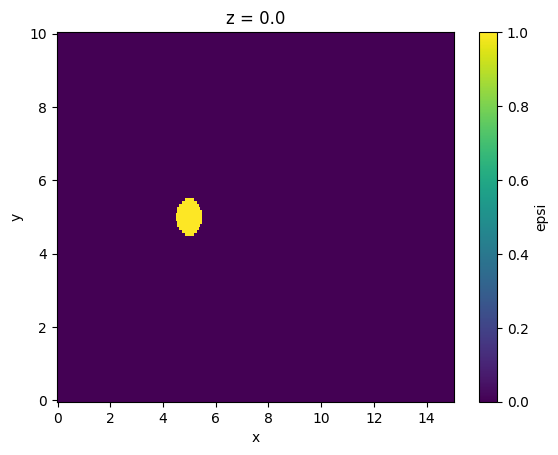

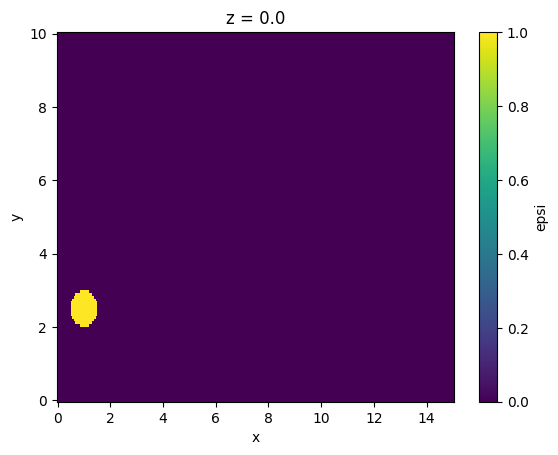

../_images/78eebabf57df4dfa5feccf452bd341da0da610613a0507ef65e89fe08167ee2c.png

The next step is to produce all the auxiliary files describing the geometry, so then Xcompact3d can read them:

%%time
dataset = x3d.gene_epsi_3d(epsi, prm)

prm.nobjmax = dataset.obj.size

dataset

CPU times: user 3.52 s, sys: 142 ms, total: 3.66 s
Wall time: 3.67 s

<xarray.Dataset> Size: 4MB
Dimensions:       (x: 257, y: 129, z: 32, obj: 1, obj_aux: 2)
Coordinates:
  * x             (x) float64 2kB 0.0 0.05859 0.1172 0.1758 ... 14.88 14.94 15.0
  * y             (y) float64 1kB 0.0 0.07812 0.1562 0.2344 ... 9.844 9.922 10.0
  * z             (z) float64 256B 0.0 0.09375 0.1875 ... 2.719 2.812 2.906
  * obj           (obj) int64 8B 0
  * obj_aux       (obj_aux) int64 16B -1 0
Data variables: (12/28)
    epsi          (x, y, z) bool 1MB False False False ... False False False
    nobj_x        (y, z) int64 33kB 0 0 0 0 0 0 0 0 0 0 ... 0 0 0 0 0 0 0 0 0 0
    nobjmax_x     int64 8B 1
    nobjraf_x     (y, z) int64 33kB 0 0 0 0 0 0 0 0 0 0 ... 0 0 0 0 0 0 0 0 0 0
    nobjmaxraf_x  int64 8B 1
    ibug_x        int64 8B 0
    ...            ...
    nxipif_y      (x, z, obj_aux) int64 132kB 2 2 2 2 2 2 2 2 ... 2 2 2 2 2 2 2
    nxfpif_y      (x, z, obj_aux) int64 132kB 128 2 128 2 128 ... 2 128 2 128 2
    xi_z          (x, y, obj) float64 265kB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    xf_z          (x, y, obj) float64 265kB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    nxipif_z      (x, y, obj_aux) int64 530kB 2 2 2 2 2 2 2 2 ... 2 2 2 2 2 2 2
    nxfpif_z      (x, y, obj_aux) int64 530kB 31 2 31 2 31 2 ... 31 2 31 2 31 2

Boundary Condition#

Everything needed is in one Dataset (see API reference):

ds = x3d.init_dataset(prm)

Let’s see it, data and attributes are attached, try to interact with the icons:

ds

<xarray.Dataset> Size: 26MB
Dimensions:       (x: 257, y: 129, z: 32, n: 0)
Coordinates:
  * x             (x) float64 2kB 0.0 0.05859 0.1172 0.1758 ... 14.88 14.94 15.0
  * y             (y) float64 1kB 0.0 0.07812 0.1562 0.2344 ... 9.844 9.922 10.0
  * z             (z) float64 256B 0.0 0.09375 0.1875 ... 2.719 2.812 2.906
  * n             (n) float64 0B
Data variables:
    bxx1          (y, z) float64 33kB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    bxy1          (y, z) float64 33kB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    bxz1          (y, z) float64 33kB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    noise_mod_x1  (y, z) float64 33kB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    ux            (x, y, z) float64 8MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    uy            (x, y, z) float64 8MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
    uz            (x, y, z) float64 8MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0

Inflow profile: Since the boundary conditions for velocity at the top and at the bottom are free-slip in this case (ncly1=nclyn=1), the inflow profile for streamwise velocity is just 1 everywhere:

fun = xr.ones_like(ds.y)

# This attribute will be shown in the figure
fun.attrs["long_name"] = r"Inflow Profile - f($x_2$)"

fun.plot();

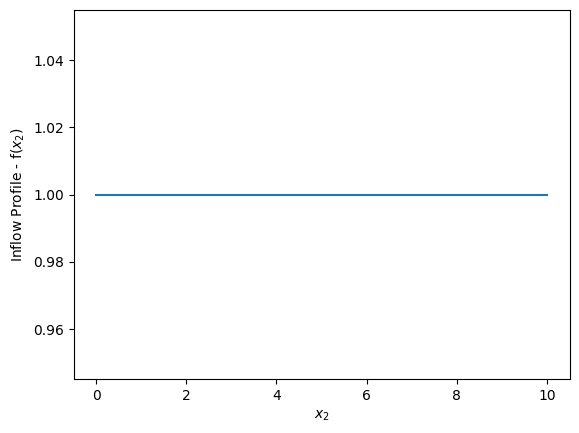

../_images/132143599a67bee5251d4f9557709f7137f6f2138d99db09aa16bdd877acc22e.png

Now, we reset the inflow planes ds[key] *= 0.0, just to guarantee consistency in case of multiple executions of this cell. Notice that ds[key] = 0.0 may overwrite all the metadata contained in the array, so it should be avoided. Then, we add the inflow profile to the streamwise componente and plot them for reference:

for key in "bxx1 bxy1 bxz1".split():
    #
    print(ds[key].attrs["name"])
    #
    ds[key] *= 0.0
    #
    if key == "bxx1":
        ds[key] += fun
    #
    ds[key].plot()
    plt.show()

plt.close("all")

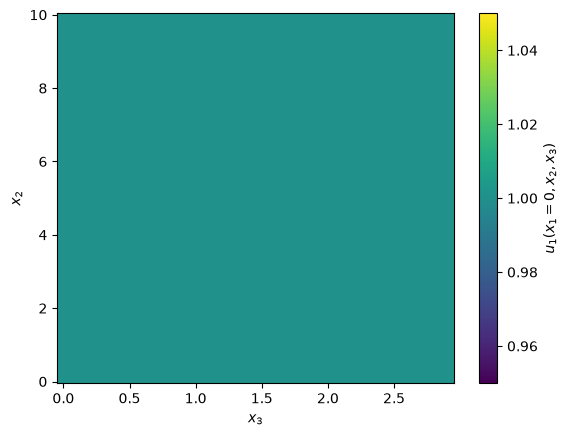

Inflow Plane for Streamwise Velocity
../_images/f00f9782cf92ff64eeae934d3d2f04d10393f6fb2eabfa0a381f0c136a5e7f85.png
Inflow Plane for Vertical Velocity
../_images/64477480276c6ec3b06f240e8fdbd2ce8b9da5cf67f6ad4d4d9b2ecd0871e176.png

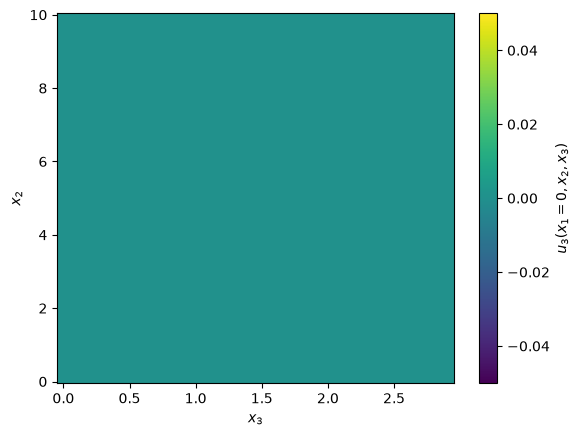

Inflow Plane for Spanwise Velocity

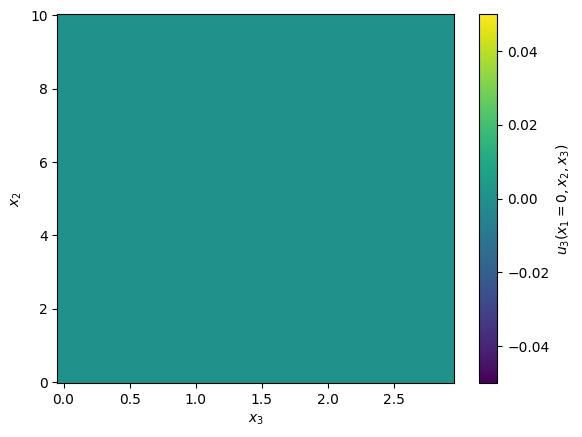

../_images/a5f905e2dd15769c1eb694c7e51c1b8ce9926b06cf26eef9807e97db33598a24.png

A random noise will be applied at the inflow boundary, we can create a modulation function mod to control were it will be applied. In this case, we will concentrate the noise near the center region and make it zero were \(y=0\) and \(y=L_y\). The domain is periodic in \(z\) nclz1=nclzn=0, so there is no need to make mod functions of \(z\). The functions looks like:

\[ \text{mod} = \exp\left(-0.2 (y - 0.5 L_y)^2 \right). \]

See the code:

# Random noise with fixed seed,
# important for reproducibility, development and debugging
if prm.iin == 2:
    np.random.seed(seed=67)

mod = np.exp(-0.2 * (ds.y - ds.y[-1] * 0.5) ** 2.0)

# This attribute will be shown in the figure
mod.attrs["long_name"] = "Noise modulation"

mod.plot();

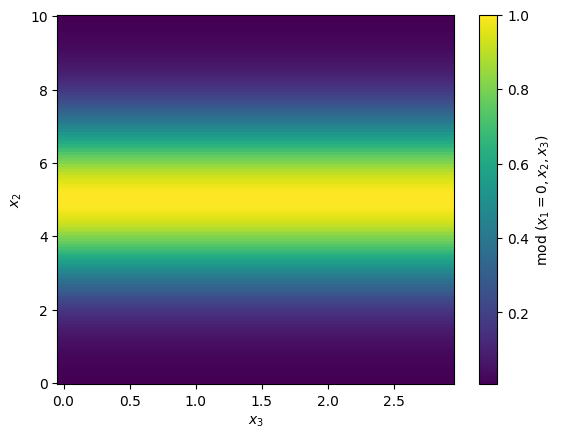

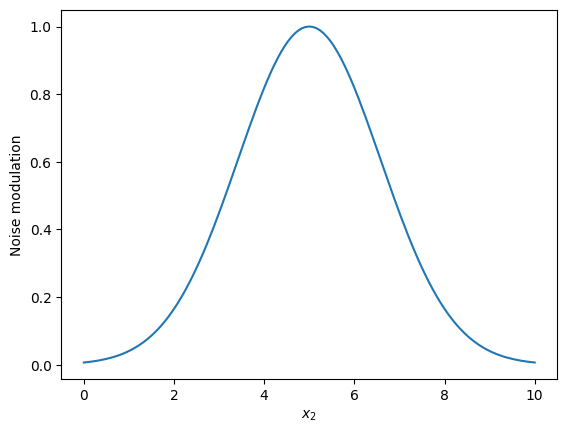

../_images/15c2ea02848dd430b98c772dac05f048caa46bb423fe28bd2fd49a43ea39722c.png

Again, we reset the array ds['noise_mod_x1'] *= 0.0, just to guarantee consistency in case of multiple executions of this cell. Notice that ds['noise_mod_x1'] *= 0.0 may overwrite all the metadata contained in the array, so it should be avoided. Then, we add the modulation profile to the proper array and plot it for reference:

ds["noise_mod_x1"] *= 0.0
ds["noise_mod_x1"] += mod
ds.noise_mod_x1.plot();
../_images/437a8c5a11629184b3044bf64ce231727a57654f3a10bb6e6386824475271325.png

Notice one of the many advantages of using xarray, mod, with shape (ny), was automatically broadcasted for every point in z into ds.noise_mod_x1, with shape (ny, nz).

Initial Condition#

Now we reset velocity fields ds[key] *= 0.0, just to guarantee consistency in the case of multiple executions of this cell.

We then add a random number array with the right shape, multiply by the noise amplitude at the initial condition init_noise and multiply again by our modulation function mod, defined previously. Finally, we add the streamwise profile fun to ux and make the plots for reference, I’m adding extra options just to exemplify how easily we can slice the spanwise coordinate and produce multiple plots:

for key in "ux uy uz".split():
    #
    print(ds[key].attrs["name"])
    #
    ds[key] *= 0.0
    ds[key] += prm.init_noise * (np.random.random(ds[key].shape) - 0.5)
    ds[key] *= mod
    #
    if key == "ux":
        ds[key] += fun
    #
    ds[key].sel(z=slice(None, None, ds.z.size // 3)).plot(x="x", y="y", col="z", col_wrap=2)
    plt.show()
    #

plt.close("all")

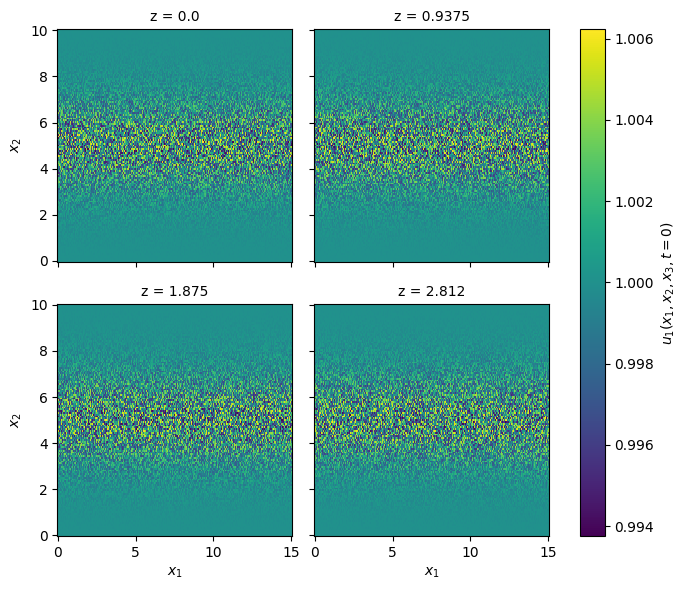

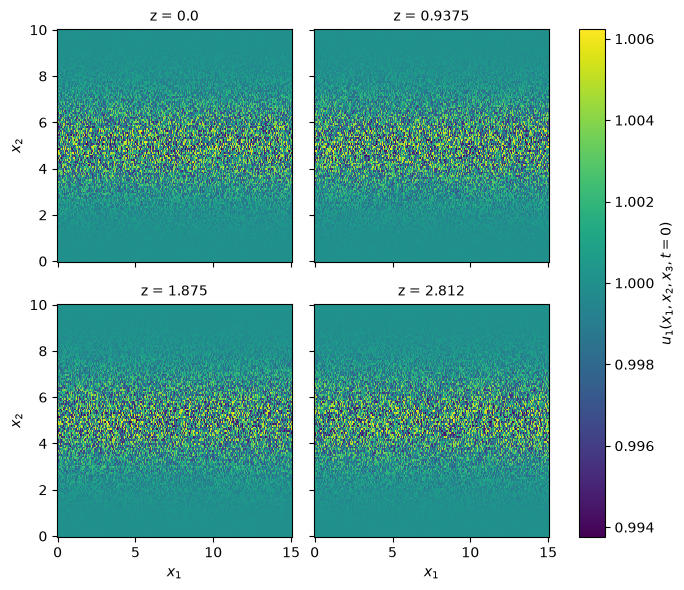

Initial Condition for Streamwise Velocity

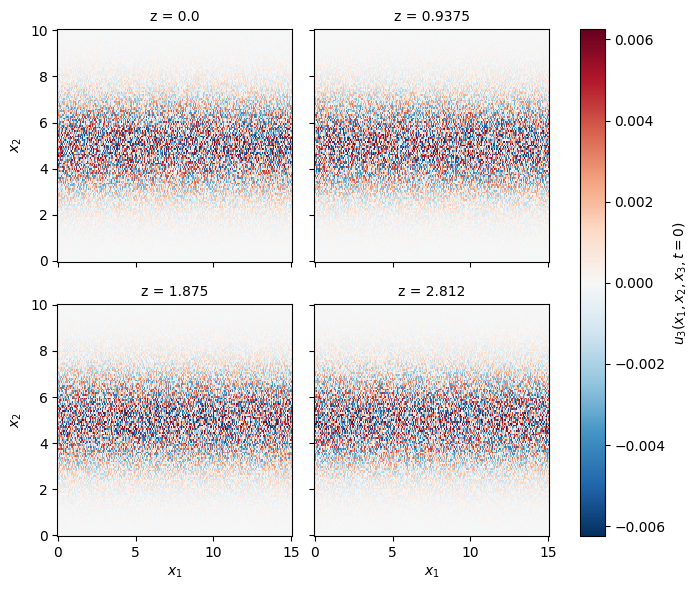

../_images/d1df96c9a4f0aebf13c467d6f96e282e2849531e5f006181fdaf502e65c90e69.png

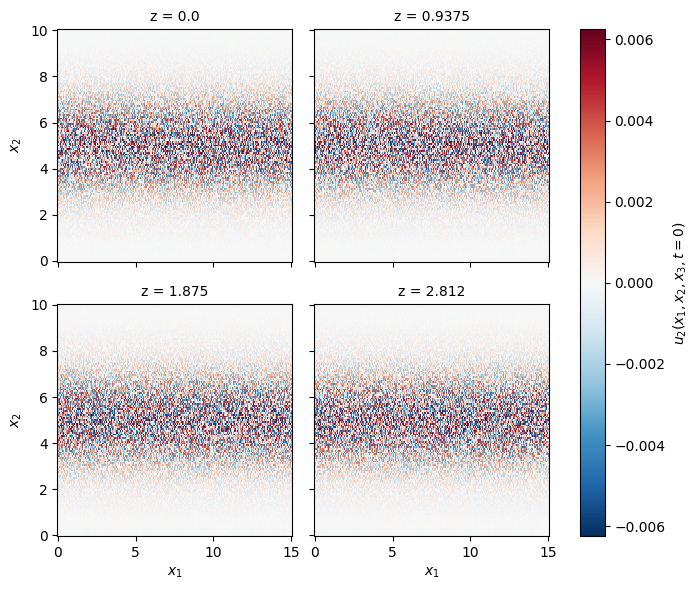

Initial Condition for Vertical Velocity
../_images/c7933451c8bb1ed13195fb0541087234ac592c347ec01817503fe101a303a435.png

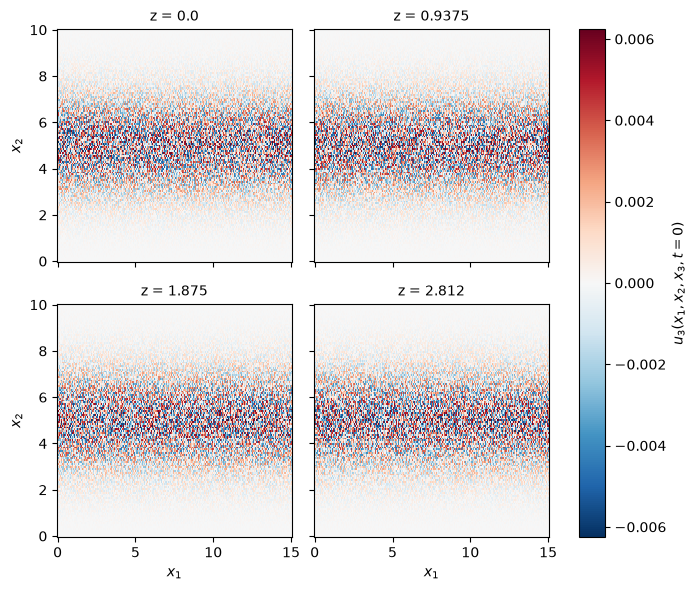

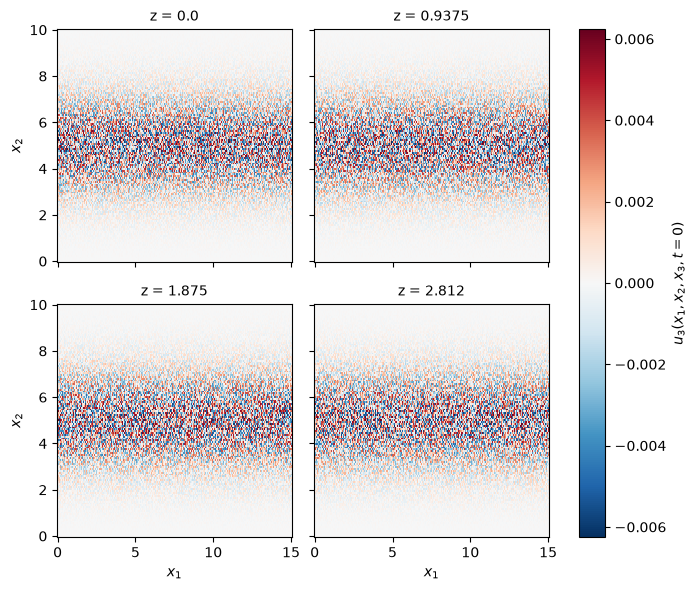

Initial Condition for Spanwise Velocity
../_images/9a4219bc15db218c80f2a37461c7a41fbae4f7222462c472510eaf5786241db3.png

Writing to disc#

is as simple as:

prm.dataset.write(ds)

prm.write()

Running the Simulation#

It was just to show the capabilities of xcompact3d_toolbox.sandbox, keep in mind the aspects of numerical stability of our Navier-Stokes solver. It is up to the user to find the right set of numerical and physical parameters.

Make sure that the compiling flags and options at Makefile are what you expect. Then, compile the main code at the root folder with make.

And finally, we are good to go:

mpirun -n [number of cores] ./xcompact3d |tee log.out
