Periodic Heat Exchanger#
import matplotlib.pyplot as plt
import numpy as np
import xcompact3d_toolbox as x3d
Parameters#
Numerical precision
Use np.float64
if Xcompact3d was compiled with the flag -DDOUBLE_PREC
, use np.float32
otherwise.
x3d.param["mytype"] = np.float64
Xcompact3d’s parameters
For more information about them, checkout the API reference.
prm = x3d.Parameters(
filename="input.i3d",
# BasicParam
itype=12,
p_row=0,
p_col=0,
nx=128,
ny=129,
nz=8,
xlx=6.0,
yly=6.0,
zlz=0.375,
nclx1=0,
nclxn=0,
ncly1=2,
nclyn=2,
nclz1=0,
nclzn=0,
iin=1,
re=300.0,
init_noise=0.0125,
inflow_noise=0.0,
dt=0.0025,
ifirst=1,
ilast=90000,
ilesmod=1,
iibm=2,
gravx=0.0,
gravy=-1.0,
gravz=0.0,
# NumOptions
nu0nu=4.0,
cnu=0.44,
# InOutParam
irestart=0,
icheckpoint=45000,
ioutput=500,
iprocessing=100,
# LESModel
jles=4,
# ScalarParam
numscalar=1,
nclxS1=0,
nclxSn=0,
nclyS1=2,
nclySn=2,
nclzS1=0,
nclzSn=0,
sc=[1.0],
ri=[-0.25],
uset=[0.0],
cp=[1.0],
)
Setup#
Geometry#
Everything needed is in one dictionary of Arrays (see API reference):
epsi = x3d.init_epsi(prm)
The four \(\epsilon\) matrices are stored in a dictionary:
epsi.keys()
dict_keys(['epsi', 'xepsi', 'yepsi', 'zepsi'])
Now we draw a cylinder:
# And apply geo.cylinder over the four arrays
for key in epsi:
epsi[key] = epsi[key].geo.cylinder(
x=prm.xlx / 2.0,
y=prm.yly / 2.0,
)
# A quickie plot for reference

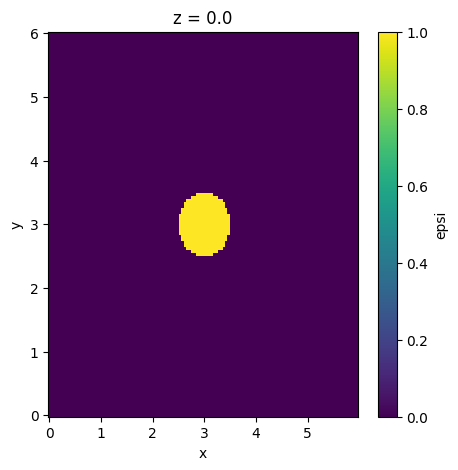

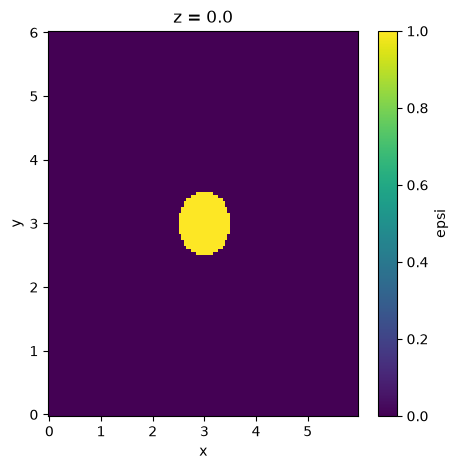

epsi["epsi"].sel(z=0, method="nearest").plot(x="x", aspect=1, size=5)
<matplotlib.collections.QuadMesh at 0x7f10d8fdb530>
The next step is to produce all the auxiliary files describing the geometry, so then Xcompact3d can read them:
%%time
dataset = x3d.gene_epsi_3d(epsi, prm)
prm.nobjmax = dataset.obj.size
dataset
CPU times: user 3.03 s, sys: 163 ms, total: 3.2 s
Wall time: 3.2 s
<xarray.Dataset> Size: 1MB Dimensions: (x: 128, y: 129, z: 8, obj: 1, obj_aux: 2) Coordinates: * x (x) float64 1kB 0.0 0.04688 0.09375 ... 5.859 5.906 5.953 * y (y) float64 1kB 0.0 0.04688 0.09375 0.1406 ... 5.906 5.953 6.0 * z (z) float64 64B 0.0 0.04688 0.09375 ... 0.2344 0.2812 0.3281 * obj (obj) int64 8B 0 * obj_aux (obj_aux) int64 16B -1 0 Data variables: (12/28) epsi (x, y, z) bool 132kB False False False ... False False False nobj_x (y, z) int64 8kB 0 0 0 0 0 0 0 0 0 0 0 ... 0 0 0 0 0 0 0 0 0 0 nobjmax_x int64 8B 1 nobjraf_x (y, z) int64 8kB 0 0 0 0 0 0 0 0 0 0 0 ... 0 0 0 0 0 0 0 0 0 0 nobjmaxraf_x int64 8B 1 ibug_x int64 8B 0 ... ... nxipif_y (x, z, obj_aux) int64 16kB 2 2 2 2 2 2 2 2 ... 2 2 2 2 2 2 2 2 nxfpif_y (x, z, obj_aux) int64 16kB 128 2 128 2 128 2 ... 2 128 2 128 2 xi_z (x, y, obj) float64 132kB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 xf_z (x, y, obj) float64 132kB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 nxipif_z (x, y, obj_aux) int64 264kB 2 2 2 2 2 2 2 2 ... 2 2 2 2 2 2 2 nxfpif_z (x, y, obj_aux) int64 264kB 7 2 7 2 7 2 7 2 ... 2 7 2 7 2 7 2
Boundary Condition#
Everything needed is in one Dataset (see API reference):
ds = x3d.init_dataset(prm)
Let’s see it, data and attributes are attached, try to interact with the icons:
ds
<xarray.Dataset> Size: 5MB Dimensions: (x: 128, y: 129, z: 8, n: 1) Coordinates: * x (x) float64 1kB 0.0 0.04688 0.09375 0.1406 ... 5.859 5.906 5.953 * y (y) float64 1kB 0.0 0.04688 0.09375 0.1406 ... 5.906 5.953 6.0 * z (z) float64 64B 0.0 0.04688 0.09375 0.1406 ... 0.2344 0.2812 0.3281 * n (n) int64 8B 1 Data variables: byphi1 (n, x, z) float64 8kB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 byphin (n, x, z) float64 8kB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 ux (x, y, z) float64 1MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 uy (x, y, z) float64 1MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 uz (x, y, z) float64 1MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 phi (n, x, y, z) float64 1MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 vol_frc (x, y, z) float64 1MB 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0
The dimensionless temperature at the objects’s surface will always be set to zero by the Immersed Boundary Method, so in opposition to that, let’s set the dimensionless temperature at the top and bottom boundaries to one:
for var in "byphi1 byphin".split():
ds[var] *= 0.0
ds[var] += 1.0
Initial Condition#
Velocity profile: Since the boundary conditions for velocity at the top and at the bottom are no-slip in this case (ncly2=nclyn=2
), the inflow profile for streamwise velocity must be zero near walls:
# This function gives the shape
fun = -((ds.y - prm.yly / 2.0) ** 2.0)
# This attribute will be shown in the figure
fun.attrs["long_name"] = r"Inflow Profile - f($x_2$)"
# Now, let's adjust its magnitude
fun -= fun.isel(y=0)
fun /= fun.x3d.simpson("y") / prm.yly

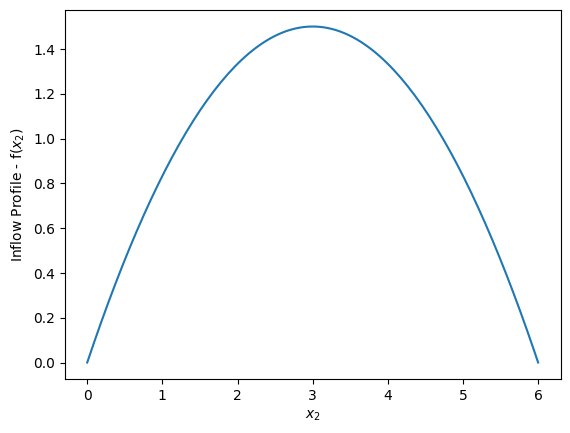

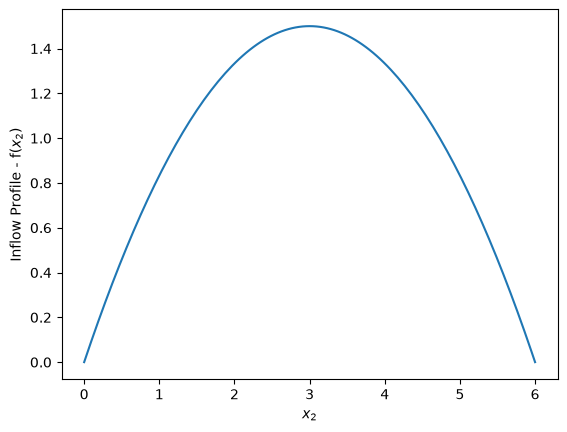

fun.plot()
[<matplotlib.lines.Line2D at 0x7f10d5736420>]
Now, let’s make sure that the dimensionless averaged velocity is unitary:
fun.x3d.simpson("y") / prm.yly
<xarray.DataArray 'y' ()> Size: 8B array(1.)
A random noise will be applied at the three velocity components, we can create a modulation function mod
to control were it will be applied. In this case, we will concentrate the noise near the center region and make it zero were \(y=0\) and \(y=L_y\). The domain is periodic in \(z\) nclz1=nclzn=0
, so there is no need to make mod
functions of \(z\). The functions looks like:
See the code:
# Random noise with fixed seed,
# important for reproducibility, development and debugging
if prm.iin == 2:
np.random.seed(seed=67)
mod = np.exp(-0.5 * (ds.y - prm.yly * 0.5) ** 2.0)
# This attribute will be shown in the figure
mod.attrs["long_name"] = r"Noise Modulation - f($x_2$)"

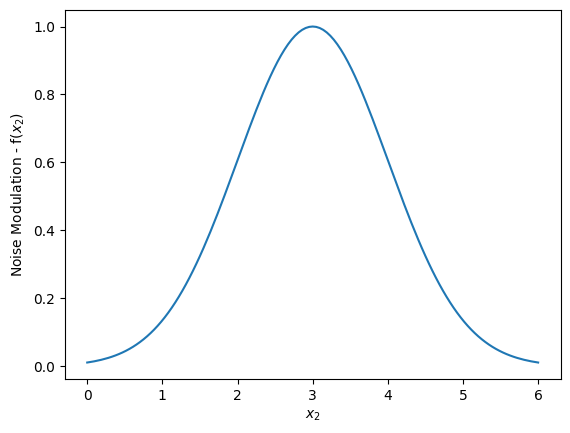

mod.plot()
[<matplotlib.lines.Line2D at 0x7f10d584c290>]
Now we reset velocity fields ds[key] *= 0.0
, just to guarantee consistency in the case of multiple executions of this cell.
We then add a random number array with the right shape, multiply by the noise amplitude at the initial condition init_noise
and multiply again by our modulation function mod
, defined previously. Finally, we add the streamwise profile fun
to ux
and make the plots for reference, I’m adding extra options just to exemplify how easily we can slice the spanwise coordinate and produce multiple plots:

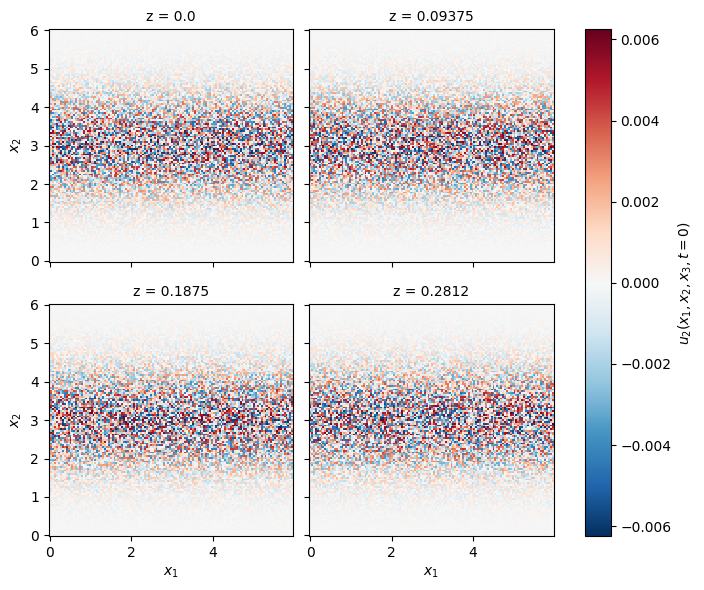

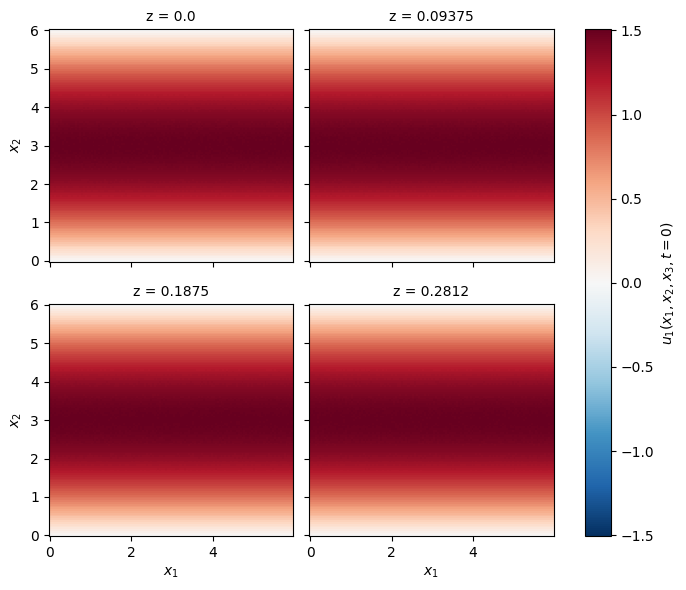

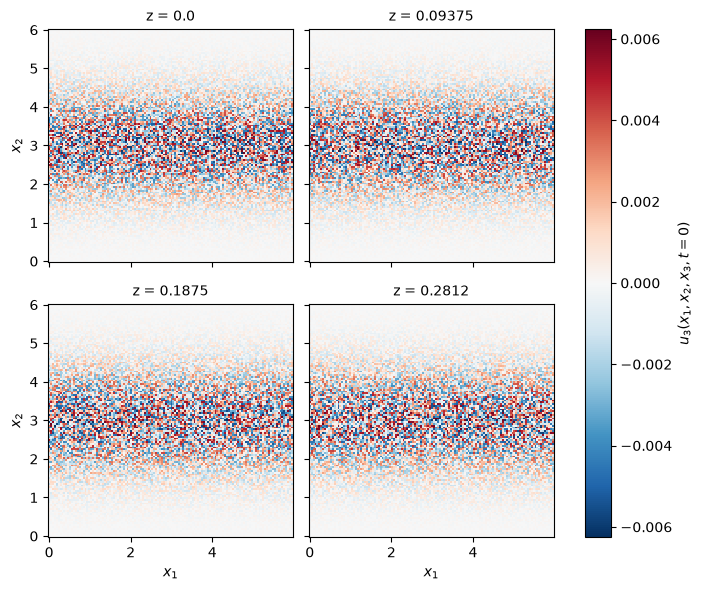

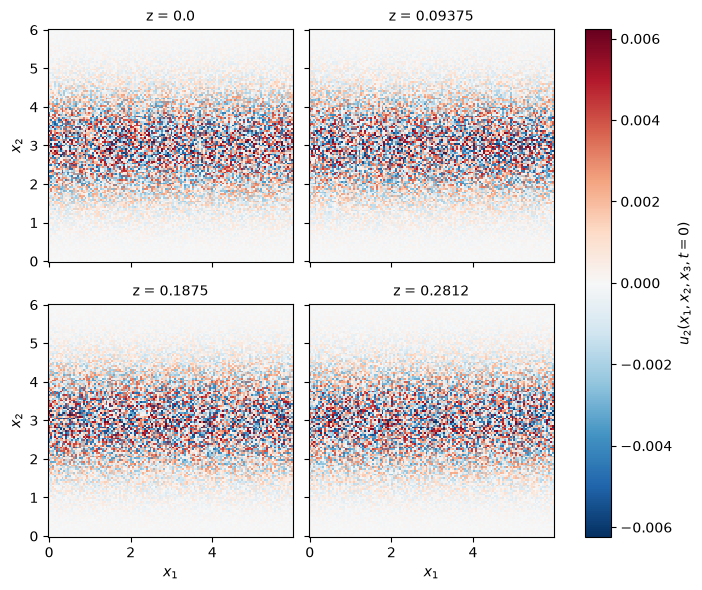

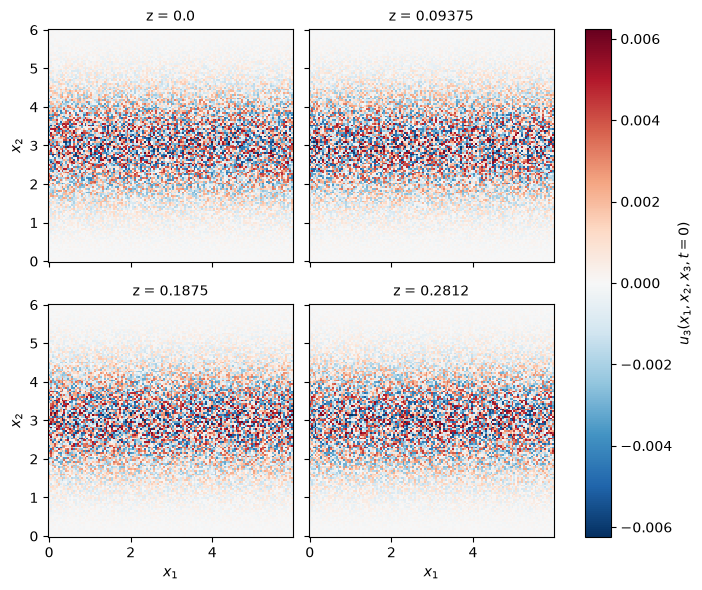

for key in "ux uy uz".split():
#
print(ds[key].attrs["name"])
#
ds[key] *= 0.0
ds[key] += prm.init_noise * (np.random.random(ds[key].shape) - 0.5)
ds[key] *= mod
#
if key == "ux":
ds[key] += fun
#
ds[key].sel(z=slice(None, None, ds.z.size // 3)).plot(x="x", y="y", col="z", col_wrap=2, aspect=1, size=3)
plt.show()
#
plt.close("all")
Initial Condition for Streamwise Velocity
Initial Condition for Vertical Velocity
Initial Condition for Spanwise Velocity
For temperature, let’s start with one everywhere:
ds["phi"] *= 0.0
ds["phi"] += 1.0
Flow rate control#
The Sandbox flow configuration is prepared with a forcing term when the flow is periodic in the streamwise direction \(x_1\), in order to compensate viscous dissipation and keep the flow rate constant.
It is done with the help of a personalized volumetric integral operator (vol_frc
), then, the streamwise velocity will be corrected at each simulated time-step as:
I = sum(vol_frc * ux)
ux = ux / I
For the composed trapezoidal rule in a uniform grid, the integral operator in the vertical direction can be computed as:
For a unitary averaged velocity, vol_frc
must be divided by the domain’s height. Besides that, for streamwise and spanwise averaged values, vol_frc
must be divided by nx
and nz
.
Finally, vol_frc
can be coded as:
ds["vol_frc"] *= 0.0
ds["vol_frc"] += prm.dy / prm.yly / prm.nx / prm.nz
ds["vol_frc"][{"y": 0}] *= 0.5
ds["vol_frc"][{"y": -1}] *= 0.5

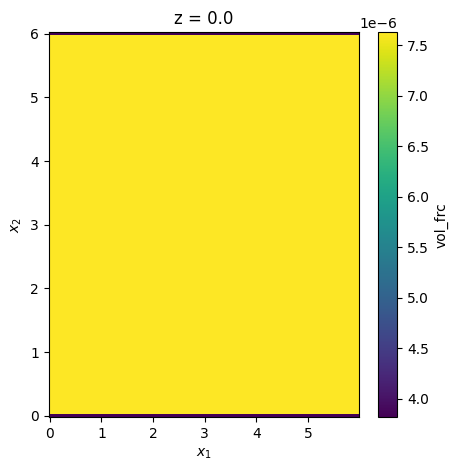

ds.vol_frc.isel(z=0).plot(x="x", y="y", aspect=1, size=5)
<matplotlib.collections.QuadMesh at 0x7f10d603bb90>
Now, let’s make sure that sum(vol_frc * ux)
is near to one:
(ds.vol_frc * ds.ux).sum(["x", "y", "z"])
<xarray.DataArray ()> Size: 8B array(0.9999334)
And the last step, we can remove the solid geometry from our integral operator using the code:
ds["vol_frc"] = ds.vol_frc.where(epsi["epsi"] == False, 0.0)

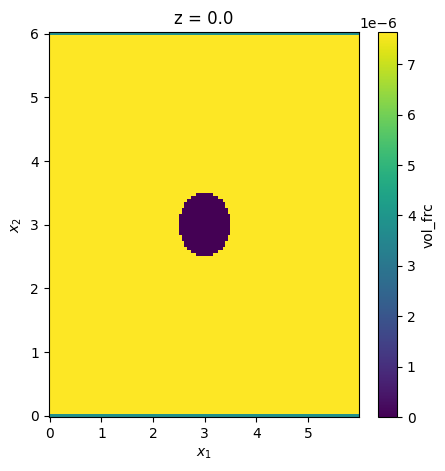

ds.vol_frc.isel(z=0).plot(x="x", y="y", aspect=1, size=5)
<matplotlib.collections.QuadMesh at 0x7f10d6093b90>
Writing to the disc#
is as simple as:
prm.dataset.write(ds)
prm.write()
Running the Simulation#
It was just to show the capabilities of xcompact3d_toolbox.sandbox
, keep in mind the aspects of numerical stability of our Navier-Stokes solver. It is up to the user to find the right set of numerical and physical parameters.
The Sandbox Flow Configuration is still in prerelease, it can be found at fschuch/Xcompact3d.
Make sure that the compiling flags and options at Makefile
are what you expect. Then, compile the main code at the root folder with make
.
And finally, we are good to go:
mpirun -n [number of cores] ./xcompact3d |tee log.out
